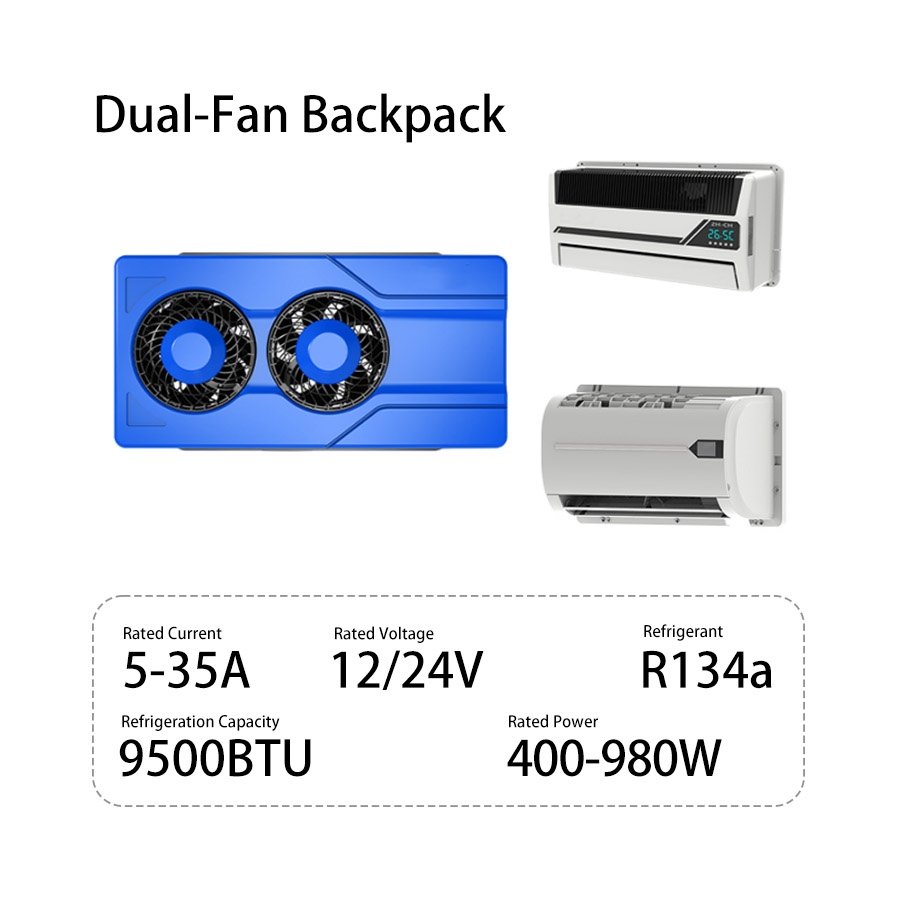

9500BTU Dual Fan Backpack Type Split Parking AC

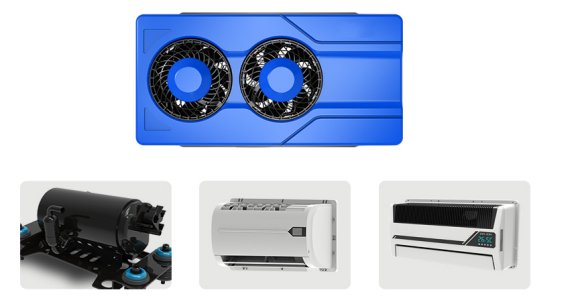

We are a parking air conditioner manufacturer with 15 years of industry experience. This dual‑fan backpack split parking air conditioner adopts dual fan outdoor unit design for enhanced heat dissipation performance.

The backpack‑style outdoor unit can be mounted on vehicle back wall without occupying chassis space. The whole system keeps vehicle original roof intact, no roof cutting required.

It delivers powerful cooling output for engine‑off idle rest. Matched with silent indoor unit, it creates quiet resting environment for drivers and campers.

Compatible with mainstream 12V and 24V DC power supply for commercial vehicles, this unit is widely selected for trucks, camper vans and modified work vehicles.

12/24V
9500BTU
400-980W
Dual Fan Design

(0) Reviews

Inquire Now

ADD TO CART

File download

Download Catalog

Key selling points

BackpackStyle Outdoor Unit Installation
Dual Fan Enhanced Heat Dissipation
Zero Roof Drilling Modification
UltraLow Noise Indoor Operation
Large Air Volume Rapid Cooling
Optimized Energy Efficiency Ratio

Product Details
Product Review
faq
Start Your Cooperation With Us Today
Related products

Product Details

Item	Parameter
Refrigerant	R134a
Refrigeration oil	POE68
Noise value	45dB(A)
Refrigerant charging volume	600±10g
Air outlet volume	450m³/h
Outdoor unit size	851462231mm
Interior unit size (Silent indoor unit)	635330190mm
Product weight	27kg

	12V	24V
Energy efficiency ratio	≥2.27	≥2.55
Rated power	400-780W	400-980W
Rated cooling capacity	8000BTU	9500BTU

Suitable Vehicle Types

This dual fan backpack split air conditioner fits vehicles with available rear mounting position. Typical applications include long haul trucks, cargo vans, camper conversions, pickup campers, mobile workshop vehicles and special engineering cabs. It is the preferred solution when rooftop installation is blocked by roof racks, cargo racks or height restriction. The backpack mounting method saves under‑carriage space which is usually reserved for fuel tanks and tool boxes.

What benefits does dual fan outdoor unit bring to split parking air conditioner?

A：Single fan outdoor units may face insufficient heat dissipation under high ambient temperature. Dual fan structure increases overall air flow passing through condenser. It maintains stable cooling performance even in hot summer weather. Better heat reduction also lowers unit working load, helps reduce power consumption and extends whole system service life.

What installation points should be noticed for backpack mount parking air conditioner?

A：The back wall of vehicle must bear the weight of outdoor unit. Keep enough clearance around outdoor unit for air circulation. Do not seal or block fan air inlet and outlet. Vibration dampers shall be installed during mounting to absorb shock from bumpy road conditions. Proper pipeline layout avoids sharp bending of refrigerant tubing to guarantee cooling efficiency.

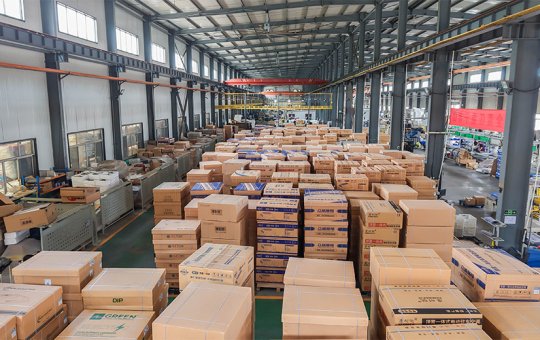

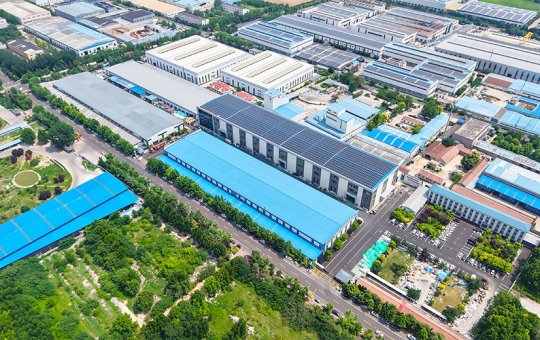

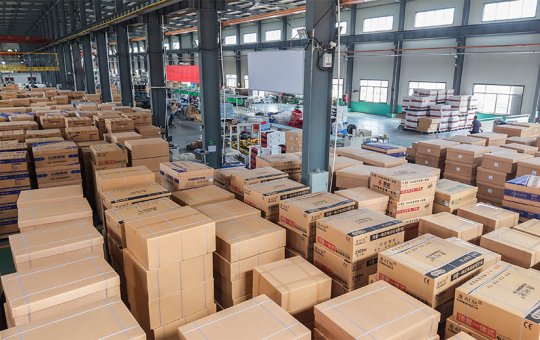

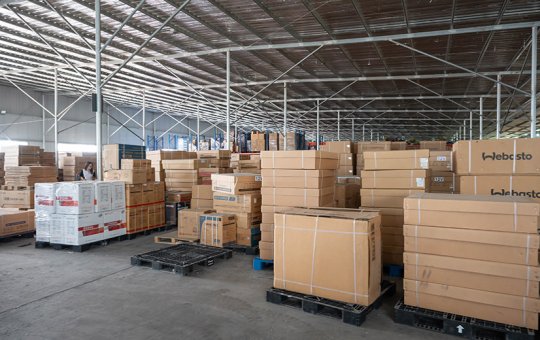

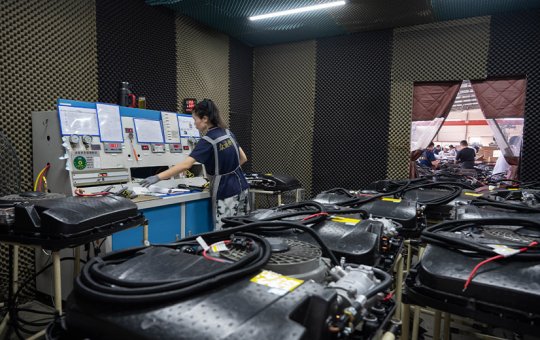

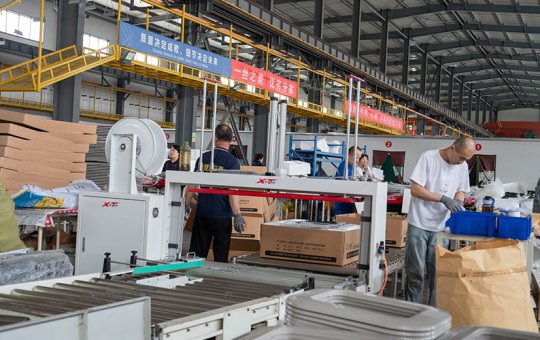

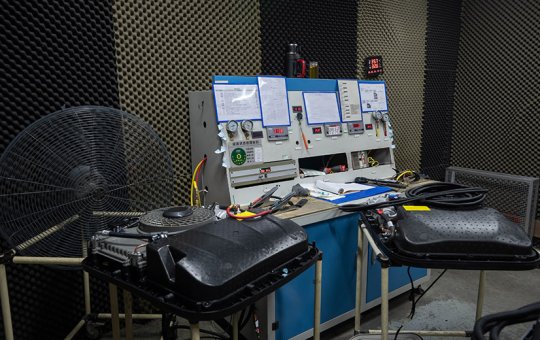

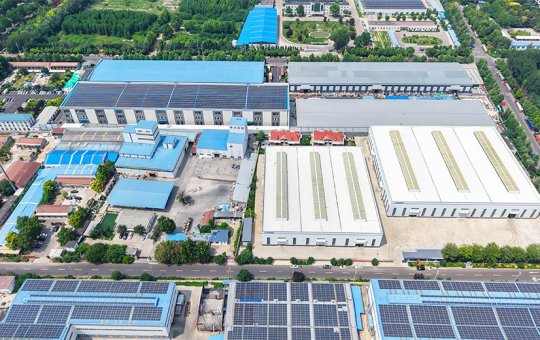

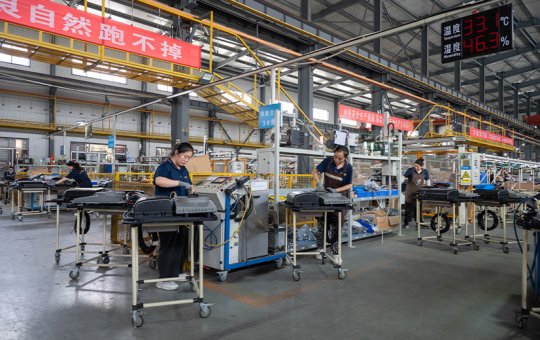

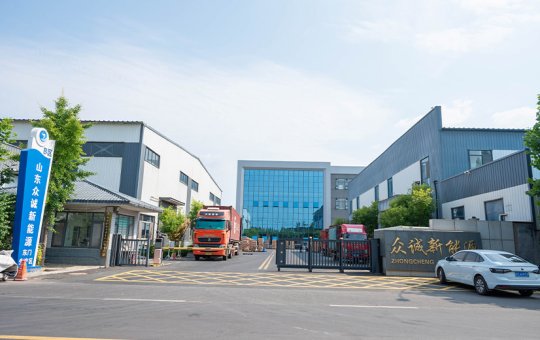

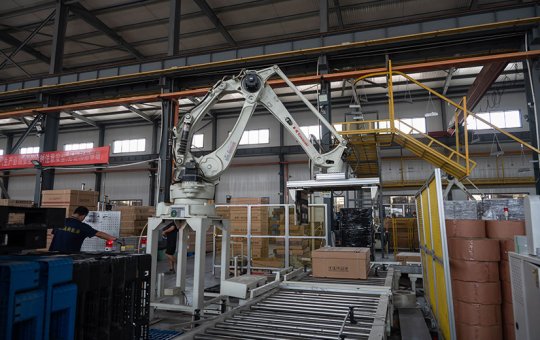

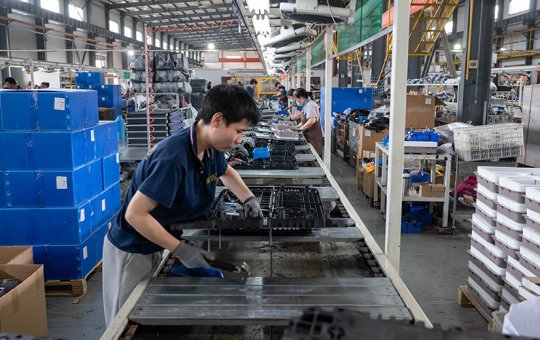

Factory Strength

Product Review

F***

My truck chassis is full of auxiliary equipment so traditional box split unit cannot fit. This backpack version mounts on cab rear wall perfectly. Noise level is pleasant for overnight rest. No cutting on my truck roof is a big advantage for vehicle resale value.

S***

We source this dual fan backpack model for our truck retrofit projects. Backpack mounting design solves chassis space shortage for many client trucks. Cooling performance holds steady under high summer temperature. Customer satisfaction keeps high, we maintain steady re‑purchase volume.

Frequently asked questions

Q: Is this parking air conditioner suitable for all types of trucks and vehicles?

A: Our parking air conditioning systems fit most heavy duty trucks, cargo vans, motorhomes, RVs and certain construction vehicles. Before purchase, please verify installation dimensions and confirm sufficient mounting space on your vehicle.

Q: Do I need to drill holes on my vehicle for installation?

A: Extra drilling is usually unnecessary if your vehicle has a factory built sunroof or pre reserved air conditioner opening. For vehicles without reserved positions, limited drilling work may be required. Complete installation guides and diagrams are supplied with every unit.

Q: How long can the parking air conditioner run purely on battery power?

A: Continuous runtime depends heavily on battery capacity, ambient temperature and actual cooling load. As a general reference, a 200Ah battery can support around 6-8 hours of operation under regular working conditions.

Q: Are your air conditioning units pre charged with refrigerant?

A: Yes. All our parking air conditioners come pre charged with eco friendly R134a refrigerant and are fully factory tested. No extra refrigerant charging is needed before first time use.

Q: What cooling performance can I expect from your parking air conditioners?

A: Cooling output varies among different series. Our parking AC units work well for standard size vehicle cabins. Under proper conditions, they can bring noticeable cabin temperature drop within a short period. Please refer to corresponding product specifications for exact BTU and wattage data.

Q: Can this air conditioner work with the vehicle engine turned off?

A: Yes. These are electric driven parking air conditioners made for engine off operation. They help cut fuel consumption and reduce engine wear during parking rest periods.

Q: What is your warranty policy, and are spare parts available?

A: We provide a 12 month warranty for main units. A full range of spare parts including compressors, fans and control boards can be supplied to support long term after sales maintenance.

Q: How loud will the air conditioner be during operation?

A: Noise level differs across product lines. Under normal operating conditions, most of our units run at ≤45dB, delivering quiet performance suitable for overnight rest inside the cabin.

Q: Can I complete the installation by myself?

A: Our parking air conditioners are engineered for user friendly installation. Basic hand tools are sufficient for assembly. We provide step by step installation videos and technical support. Many end users finish self installation within 2-3 hours.

Q: Can I start using the unit right after installation finishes?

A: Absolutely. Each unit is pre charged with refrigerant and strictly inspected before shipment. Once installation and power connection are completed, the system is ready for operation without additional setup.

Q: Do you offer OEM and custom order services?

A: OEM and ODM services are available. Options include custom branding, packaging, voltage adjustment, color and structural modifications, subject to minimum order quantity. Feel free to reach out to our sales team for further information.

Q: What is your typical production lead time?

A: Lead time varies based on order volume and stock status. For in stock items the shortest lead time can be 3 working days. The average production cycle is around 15 working days after order confirmation.

Q: Which shipping and trade terms do you support?

A: Applicable trade terms vary according to destination markets and order requirements. Please contact our sales team via email to discuss detailed shipping solutions for your project.
