7500BTU Light Truck Classic Rooftop Parking AC

Light Truck Rooftop AC Cooling and Heating

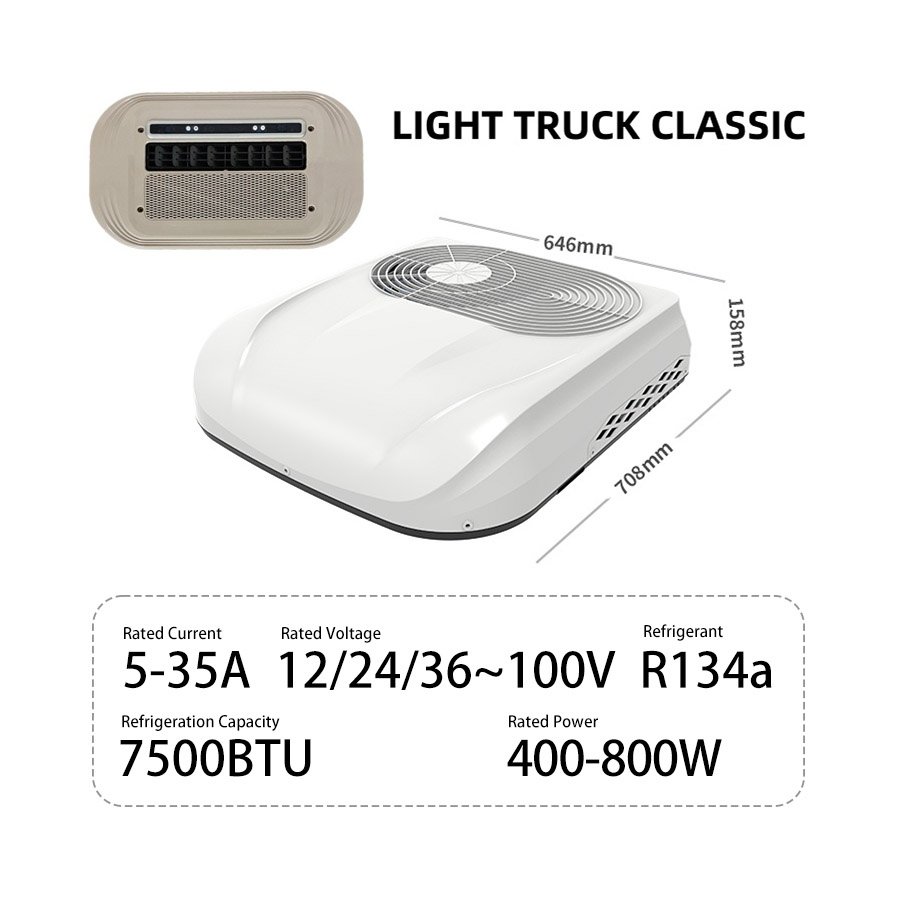

7500BTU Light Truck Classic Rooftop Parking AC

Our Classic rooftop parking air conditioner supports both cooling and heating functions to meet vehicle temperature demands all year round. Equipped with reliable inverter scroll compressor and enlarged condenser, it provides stable 7500BTU cooling output.

This model supports multi-voltage options including 12V, 24V and wide voltage 36~100V for various new energy vehicles. We supply sample orders, bulk wholesale and complete OEM customization services for global vehicle dealers.

12V / 24V / 36-100V DC
7500BTU
400-800W
Cooling & Heating Dual Mode

(0) Reviews

Inquire Now

ADD TO CART

File download

Download Catalog

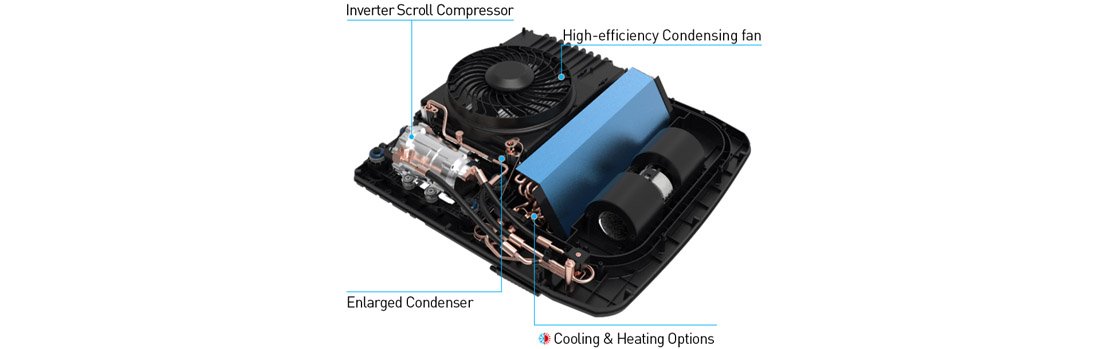

Key selling points

Cooling & Heating All-season Dual Mode
Stable Inverter Scroll Compressor
High-efficiency Single Condensing Fan
Enlarged Heat Dissipation Condenser
Full Copper Tube Heat Exchange System
Wide Voltage Compatibility 12V/24V/36-100V

Product Details
Product Review
faq
Start Your Cooperation With Us Today
Related products

Product Details

Item	Specification
Refrigerant	R134a
Noise value	40dB(A)
Refrigerant charging volume	300±10g
Air outlet volume	350m³/h

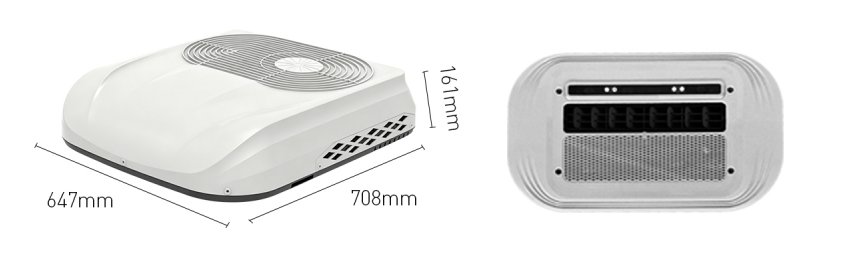

Outdoor unit size	647708161mm
Interior unit size	540*320mm
Roof Cut Size (Max size)	360*450mm
Product weight	26kg

Item	12V DC	24V DC	36~100V DC
Energy efficiency ratio	≥2.4	≥2.3	≥2.3
Rated power	400-660W	400-800W	400-800W
Rated cooling capacity	7000BTU	7500BTU	7500BTU

Problems of Single-Function Vehicle Air Conditioners

Single cooling or single heating unit requires two sets of equipment for summer and winter, raising purchase cost
Narrow fixed air outlet leads to local overcooling or overheating and uncomfortable direct wind
Ordinary small condenser easily overheats under high temperature and loses cooling power
No independent reading light, extra lighting accessories need to be prepared for cabin rest
Only fixed voltage models available, unable to match new energy vehicles with wide battery voltage range

Cooling & Heating All-season Dual Mode: One unit meets summer cooling and winter heating demands without extra heater.

Stable Inverter Scroll Compressor: Intelligent frequency control balances power consumption and temperature performance.

High-efficiency Single Condensing Fan: Concentrated airflow realizes efficient heat exchange with low noise.

Enlarged Heat Dissipation Condenser: Expanded area prevents overheating and power attenuation in hot weather.

Full Copper Tube Heat Exchange System: Excellent thermal conductivity, anti-corrosion and long service life.

Wide Voltage Compatibility: Supports traditional trucks and various new energy commercial vehicles.

Applicable Vehicle Types

Light trucks, pickup vans and small logistics vehicles
Mini campers, compact travel trailers
New energy electric commercial vehicles, small electric engineering machines

Q1: What is the advantage of cooling & heating integrated unit compared to separate air conditioner and heater?

A: Buying one dual-mode unit replaces two separate devices, greatly cutting total procurement and installation cost. The integrated structure saves roof space without extra drilling for heater installation. It is more convenient for vehicle maintenance and reduces spare parts storage pressure for modification shops.

Q2: Why is wide voltage 36~100V version necessary for new energy vehicle market?

A: Different brands of electric commercial vehicles equip battery packs with various voltage ranges. Fixed 12V/24V air conditioners cannot match most new energy trucks. Our wide voltage Classic model adapts mainstream EV battery specifications, expanding your applicable customer groups without stocking multiple single-voltage models.

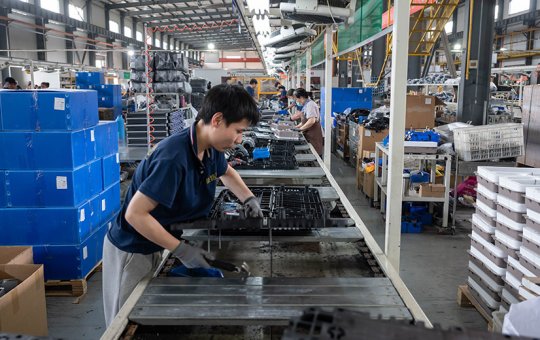

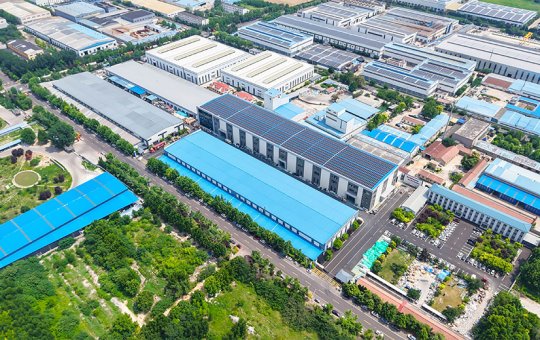

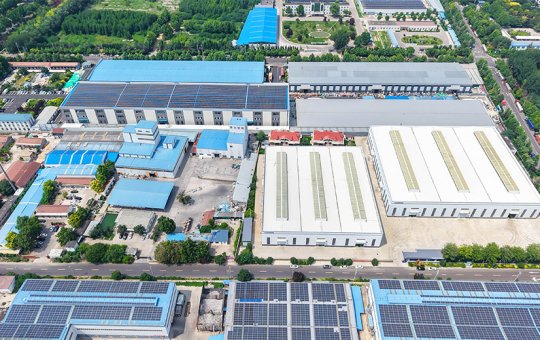

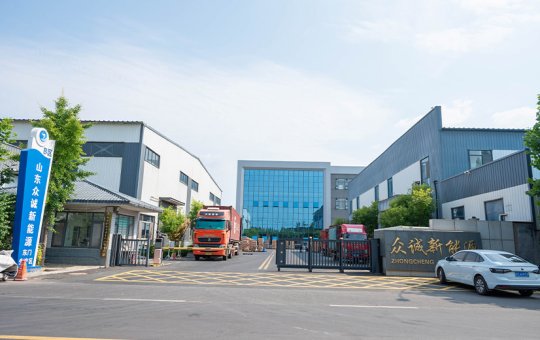

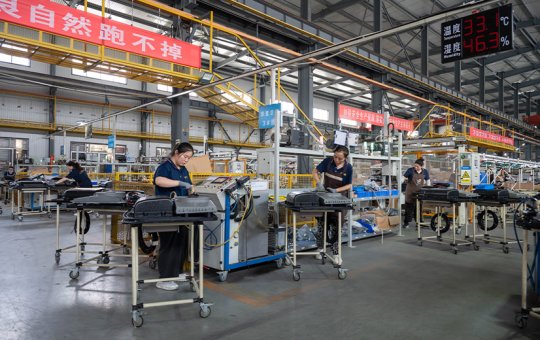

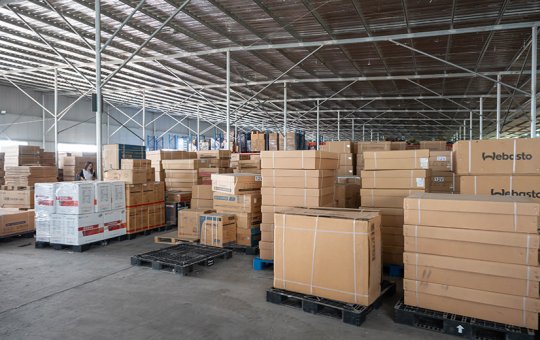

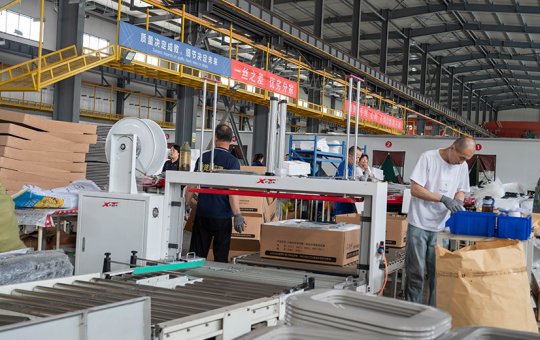

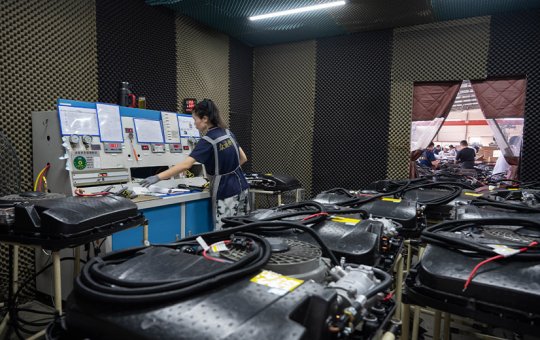

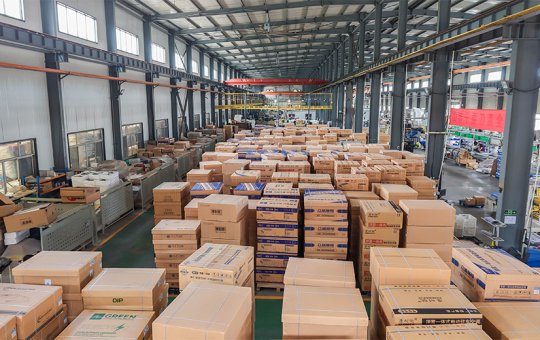

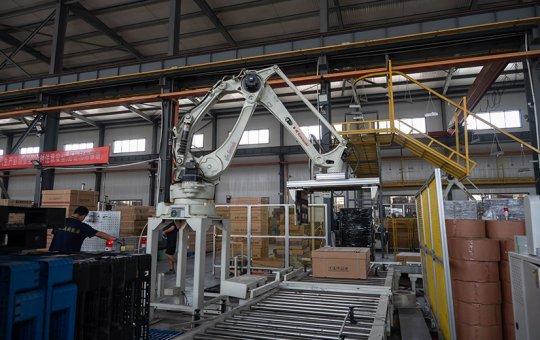

Factory Strength

Product Review

A***

Our customers operate vehicles all year round. The integrated cooling & heating function avoids purchasing extra diesel heaters. Full copper internal structure has low failure rate even under bumpy rural roads.

K***

This dual-mode Classic unit is our best-selling product for electric pickup trucks. Cooling works well in summer and heating meets winter demands. The wide voltage design fits almost all local electric light vehicles, greatly simplifying our inventory management

Frequently asked questions

Q: Is this parking air conditioner suitable for all types of trucks and vehicles?

A: Our parking air conditioning systems fit most heavy duty trucks, cargo vans, motorhomes, RVs and certain construction vehicles. Before purchase, please verify installation dimensions and confirm sufficient mounting space on your vehicle.

Q: Do I need to drill holes on my vehicle for installation?

A: Extra drilling is usually unnecessary if your vehicle has a factory built sunroof or pre reserved air conditioner opening. For vehicles without reserved positions, limited drilling work may be required. Complete installation guides and diagrams are supplied with every unit.

Q: How long can the parking air conditioner run purely on battery power?

A: Continuous runtime depends heavily on battery capacity, ambient temperature and actual cooling load. As a general reference, a 200Ah battery can support around 6-8 hours of operation under regular working conditions.

Q: Are your air conditioning units pre charged with refrigerant?

A: Yes. All our parking air conditioners come pre charged with eco friendly R134a refrigerant and are fully factory tested. No extra refrigerant charging is needed before first time use.

Q: What cooling performance can I expect from your parking air conditioners?

A: Cooling output varies among different series. Our parking AC units work well for standard size vehicle cabins. Under proper conditions, they can bring noticeable cabin temperature drop within a short period. Please refer to corresponding product specifications for exact BTU and wattage data.

Q: Can this air conditioner work with the vehicle engine turned off?

A: Yes. These are electric driven parking air conditioners made for engine off operation. They help cut fuel consumption and reduce engine wear during parking rest periods.

Q: What is your warranty policy, and are spare parts available?

A: We provide a 12 month warranty for main units. A full range of spare parts including compressors, fans and control boards can be supplied to support long term after sales maintenance.

Q: How loud will the air conditioner be during operation?

A: Noise level differs across product lines. Under normal operating conditions, most of our units run at ≤45dB, delivering quiet performance suitable for overnight rest inside the cabin.

Q: Can I complete the installation by myself?

A: Our parking air conditioners are engineered for user friendly installation. Basic hand tools are sufficient for assembly. We provide step by step installation videos and technical support. Many end users finish self installation within 2-3 hours.

Q: Can I start using the unit right after installation finishes?

A: Absolutely. Each unit is pre charged with refrigerant and strictly inspected before shipment. Once installation and power connection are completed, the system is ready for operation without additional setup.

Q: Do you offer OEM and custom order services?

A: OEM and ODM services are available. Options include custom branding, packaging, voltage adjustment, color and structural modifications, subject to minimum order quantity. Feel free to reach out to our sales team for further information.

Q: What is your typical production lead time?

A: Lead time varies based on order volume and stock status. For in stock items the shortest lead time can be 3 working days. The average production cycle is around 15 working days after order confirmation.

Q: Which shipping and trade terms do you support?

A: Applicable trade terms vary according to destination markets and order requirements. Please contact our sales team via email to discuss detailed shipping solutions for your project.
